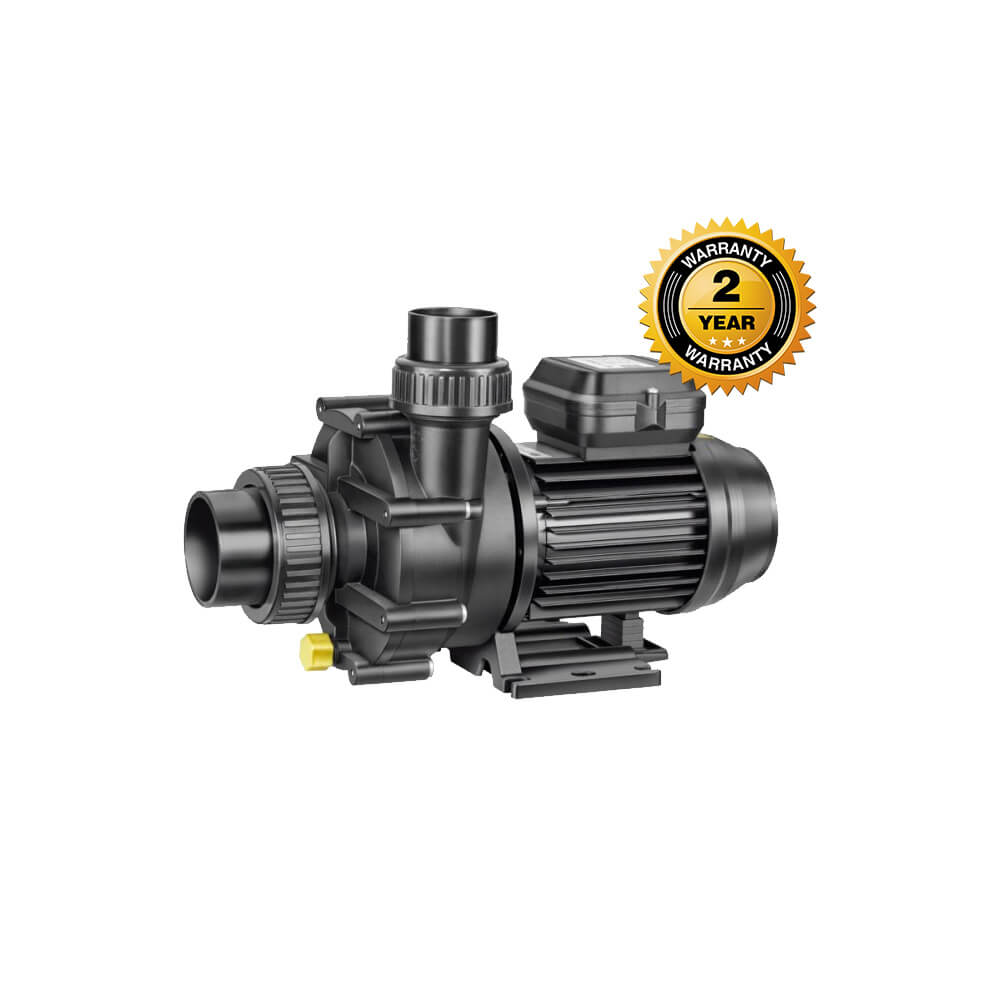

BADU 47 Encapsulated Boots Pump

The BADU 47 pumps is the boost pumps for complete filter unit jacuzzis and spa. Flow arte is from 6 to 25 m3/hr at 7 meter head. Monoblock-type pump designed with bellow type mechanical seal mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water! Complete electrical separation.

SKU: PSJD-PU005-BD-1-1 Category: Product ID: 25369

Description

The BADU 47 pumps is the boost pumps for complete filter unit jacuzzis and spa. Flow arte is from 6 to 25 m3/hr at 7 meter head. Monoblock-type pump designed with bellow type mechanical seal mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water! Complete electrical separation.

Come with special designed fully encapsulated motor. To improve.

–    Heat: The sealing compound transfer the heat from the end winding (the source of the heat) to the motor housing, as it conducts heat significantly better than air. The temperature of end wiring lower approximate 20K compare to un-encapsulated motor.

–   Dampness: the sealing compound protects the winding against dampness. As well as the IP class, the resistance of the winding against condensation water is especially improved. Of course the same goes for excessive dampness in the surrounding area.

–   Vibrancy: the vibration resistance of the winding is also increased by the sealing compound.

Material Used
Pump Casing PP TV 40
Gland Housing PP GF 15
Impeller (BADU47/5, BADU47/10, 47/16) PA 66 GF 30/PC
Impeller (BADU47/22) PA 66 GF 30
Union Glue Socket ABS ABS
Mechanical Seal Carbon/Ceramic/NBR
Bolts Brass/Stainless steel
Model Data
Model BADU 47/16
BADU 47/22
Inlet / Outlet 1 1/2” / 2” 1 1/2” / 2”
Rec. Pipe 2“ 2“
Casing Pressure 2.5 Bar 2.5 Bar
Motor Class B Class F
Voltage (V) 1~230V 1~230V
Current (A) 4.7 5.3
Power input P1(kW) 0.97 1.2
Power output P2(kW) 0.65 0.8
Weight (kg) 8.1 10.4

Additional information

Model

BADU 47/16, BADU 47/22
